product description

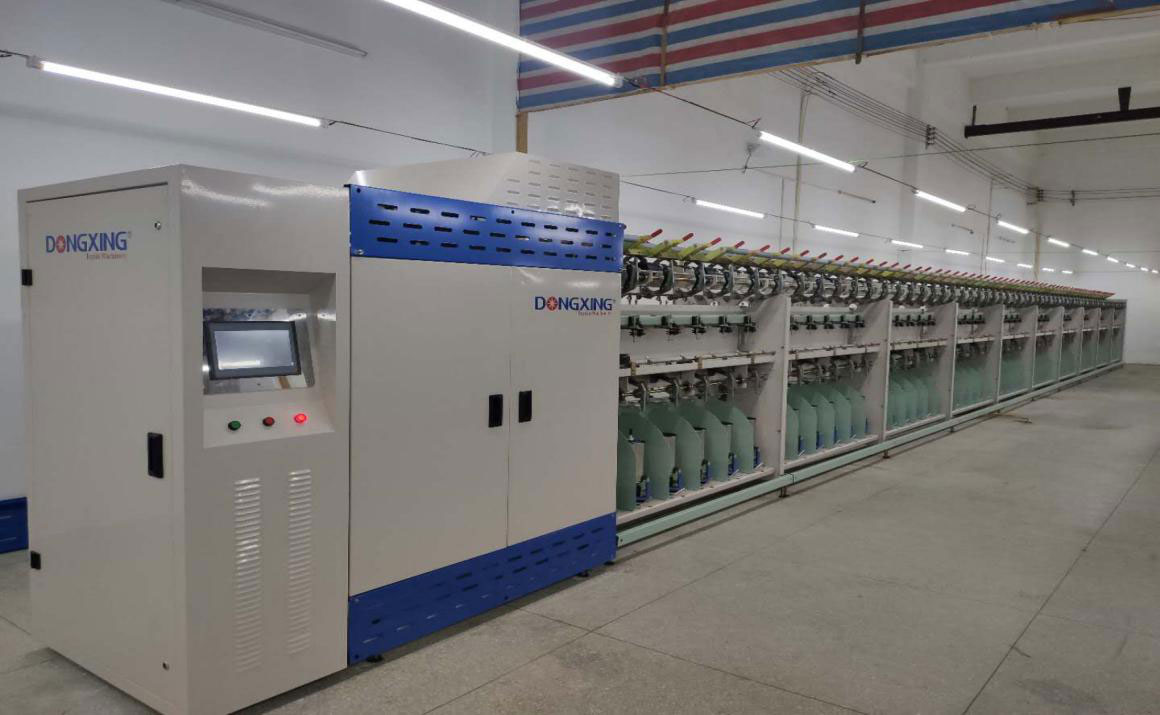

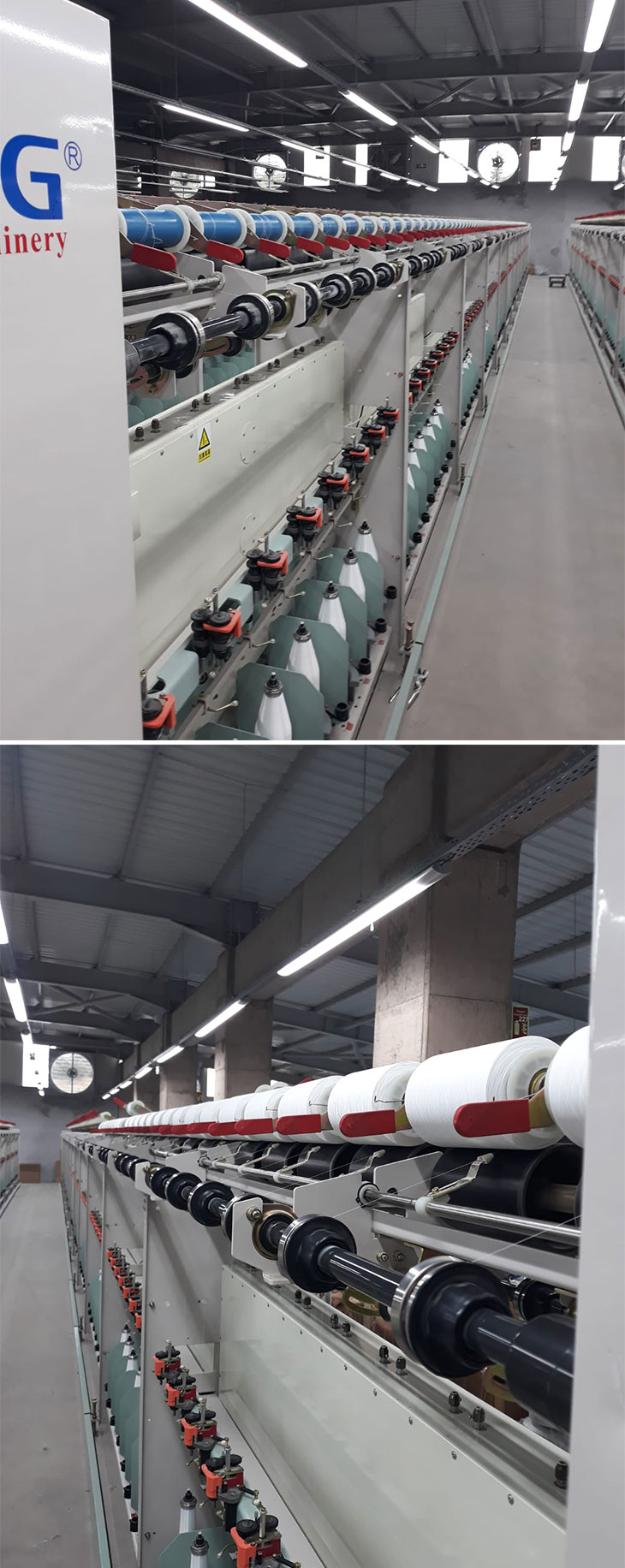

DX310Y creep machine
| No. | Items | DX310Y |
| 1 | Spindle number | 192 for basis, (A multiplier of 16 ) |
| 2 | Operation method | Double sides, single laye |
| 3 | Spindle | Ingot pulley Dm Φ28 |
| 4 | Spindle gauge | 225mm |
| 5 | Spindle Speed | 9000-13000 |
| 6 | False twister range | Winding separated form E-motor; twisting direction set freely |
| 7 | Twisting direction | S/Z |
| 8 | MAX winding capacity | 1.5KG, Φ200*152 |
| 9 | Unwinding bobbin standard | Φ110xΦ42xΦ320 |
| 10 | Take-up bobbin standard | Φ69xΦ57x170 |
| 11 | Winding angle | 20~40 degree |
| 12 | Tension Control | multiple tension bead and tension ring working together |
| 13 | Suitable range | 30D~400D Polyester filament |
| 14 | Total power | 22KW |
| 15 | Electric power | 15KW |
| 16 | Working temperature | 140℃~250℃ |
| 17 | the length of wire in heating box | 400mm |
| 18 | MAX false twister speed | 150000RPM |
Product Description:

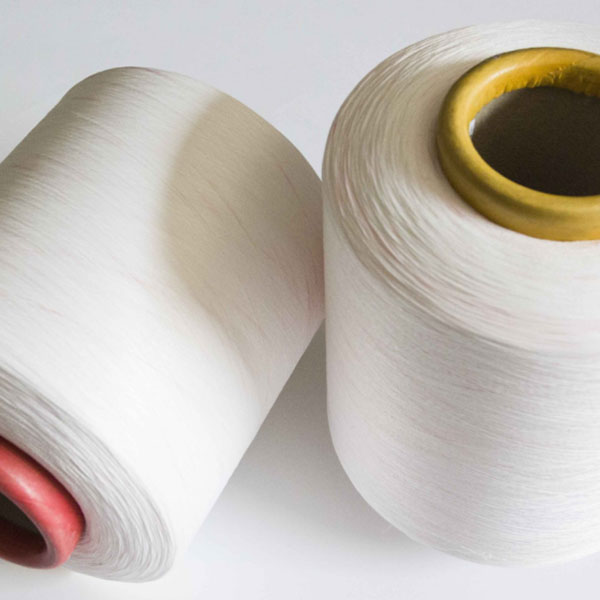

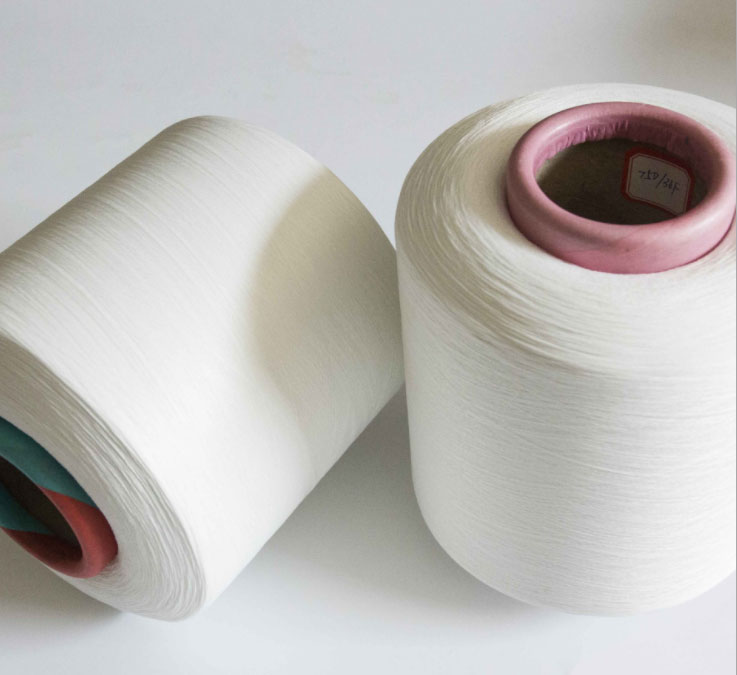

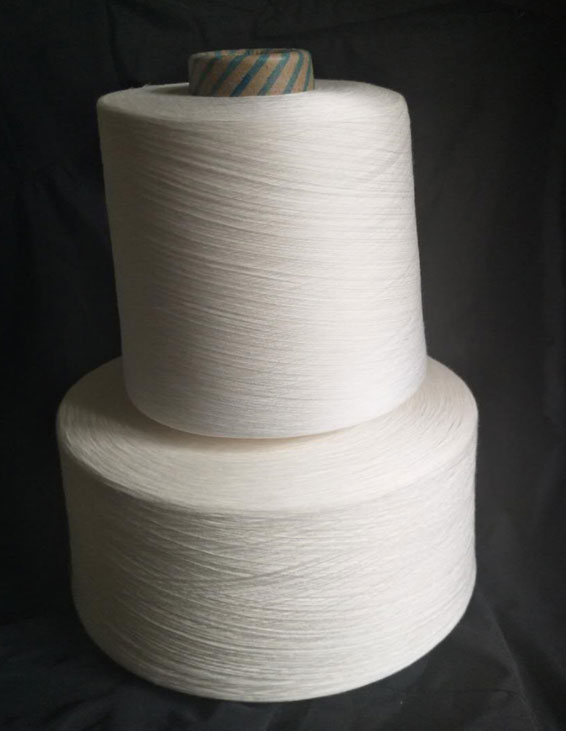

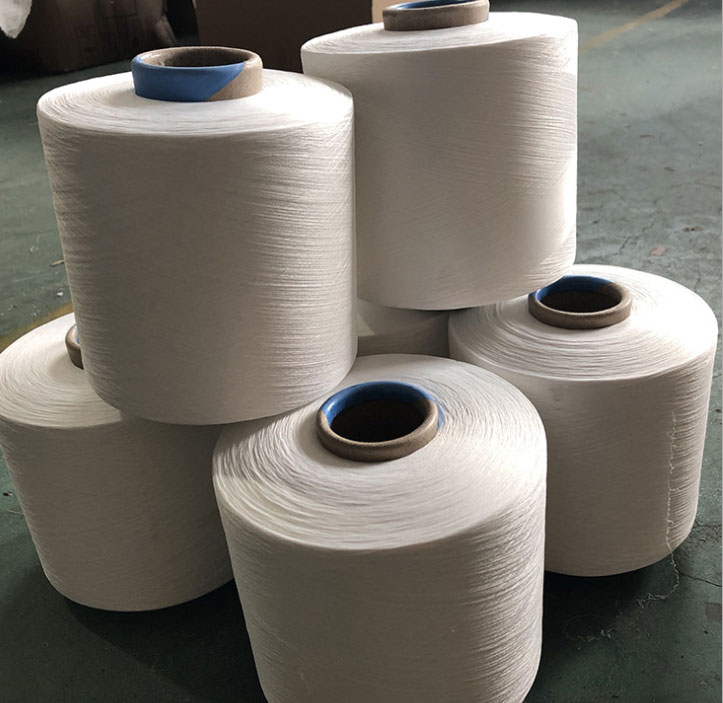

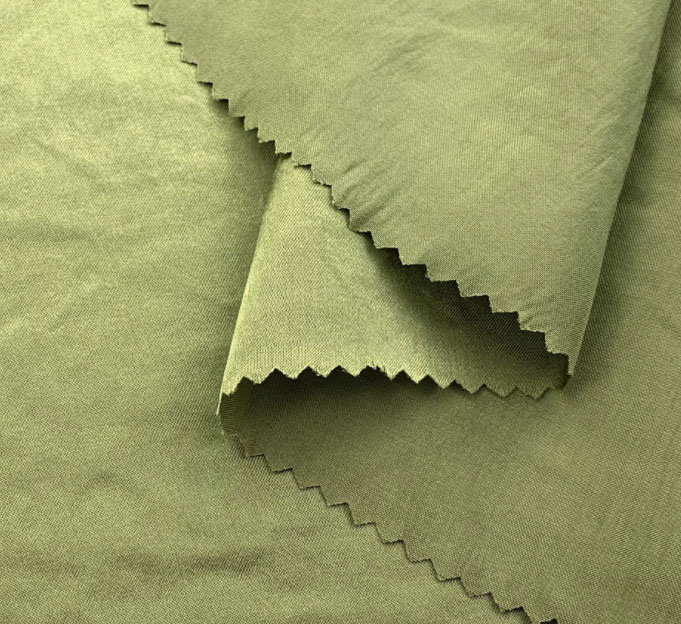

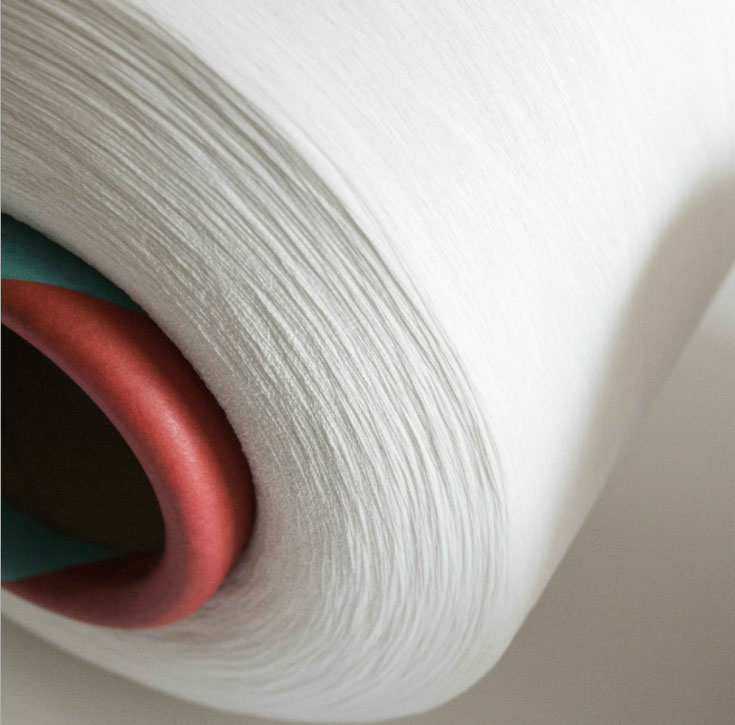

This machine is applicable to the twisting, preshrinking and false twisting of the polyester filament yarn. The crepe yarn is used as raw material for the silk-like polyester fabrics.
1. This machine is allowed to produce crepes of different styles according to the raw materials of different fineness, providing the fabric producers with a new platform and condition in the products development.
2. The machine has the following features such as high efficiency, high output, low cost, quick turnover and convenient management.
3. Digital monitoring-----spindle speed, number of false twist spindle, overfeed rate, winding speed, length of meter, alarm display, working time, program memory, twist direction etc.
4. The machine adopts PLC control, which can adjust the twist freely.
5. This machine is really the first choice in supporting the raw material depended on processing enterprises and textile factories to perfect their equipment.
