rewinding machine

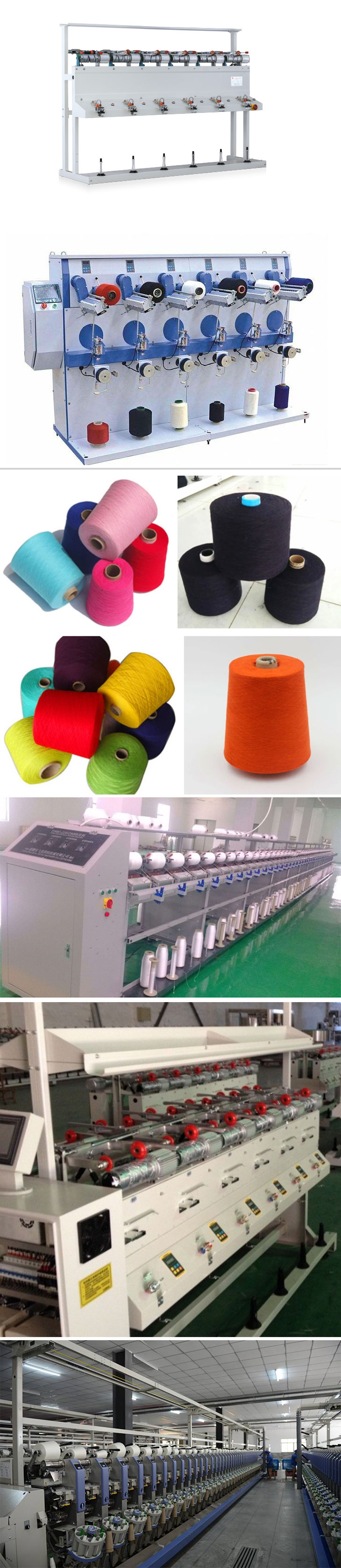

Product categories:RewindingHigh Speed Plastic Cone Winding Machine, it’s mainly for After Dyeing rewinding yarns using or thread rewinding from one bobbin to another bobbin using , suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.
product description
Parameters:
1.Drive: every spindle per motor
2.Winding speed: 300-1000 M/min
3.Has function of auto stop when yarn break.
4.Package Dia≤ 250mm; Take-up Traverse: 150mm;
5.Each spindle with length counter;
6.Advanced control panel;
| MODEL | DX High Speed Winding Machine Series |
| GROOVED DRUM | Length 182mm ,O/D 82mm,pitch 2.5,symmetrical 0°. |
| TAKE UP | Taper3°30’，4°20’，5°57’（φ62），5°57’（φ68）cylindrical170*（φ20-φ50） |
| CONFIGURATION | 2 or 6 Heads/Section single side,12 Heads/Section double side |
| MAX. SPEED | 1000m/min |
| TRAVERSE | 147mm Standard:147mm |
| BALANCER | The winding pressure can be controlled by balance of spring. |
| MAX. PACKAGE | 250mm |
| START/STOP | By single spindle operation panel and button |
| RADIAL ANTI PATTERNING SYSTEM | The anti patterning parameter is controlled by computer. |
| ABSORBED POWER | 90W per head at max. speed |
| POWER SUPPLY | 220V 50/60Hz |
| DRIVE SYSTEM | Single head control alone,2 heads to 108 heads is acceptable. |
| DETECTOR | Infrared ray has the function of stop motion for broken yarn,full bobbin and empty spin. |
| MOTORIZATION | Each spindle has one inverter motor, and each side has most 54 Spindles. |
| YARN CLEARING ASSY | Consists of the up,down blades and adjustable holder,can adjust size according to the number of yarn. |
